weighing indicator
basic function:
High precision A/D conversion, the readability of 1/30000;
The code calls convenient display, observation and analysis of weight tolerance instead of feeling;
Special software technology, enhance the system's ability to resist vibration;
Zero tracking range, zero (boot / manual range, respectively);
Digital filtering speed, amplitude and the stability of the time can be set;
With the weighing counting function; (a power-off protection unit weight)
A variety of optional backlight mode;
Random charging; undervoltage indication and protection device;
Random allocation of 6V/4AH maintenance free battery
Optional RS-232 communication port, baud rate selectable, optional communication mode;
Large screen 20mA matching the current loop communication port;
Non standard varieties recommended restructuring:
Reorganized with kg/lb conversion function; (foreign trade for the product)
With automatic calculation of average value of reorganized function; (applicable to animal husbandry scale)
Reorganized with 2 custom output function; (suitable for low speed weighing test)
technical parameter:
A/D conversion mode: sigma delta conversion
A/D conversion rate: 20 times / sec
The maximum A/D conversion number: 20bit
Input signal range: 10mV ~ 15mV
Input sensitivity: more than 1 V/e
The sensor bridge power supply C5V; I = 150mA

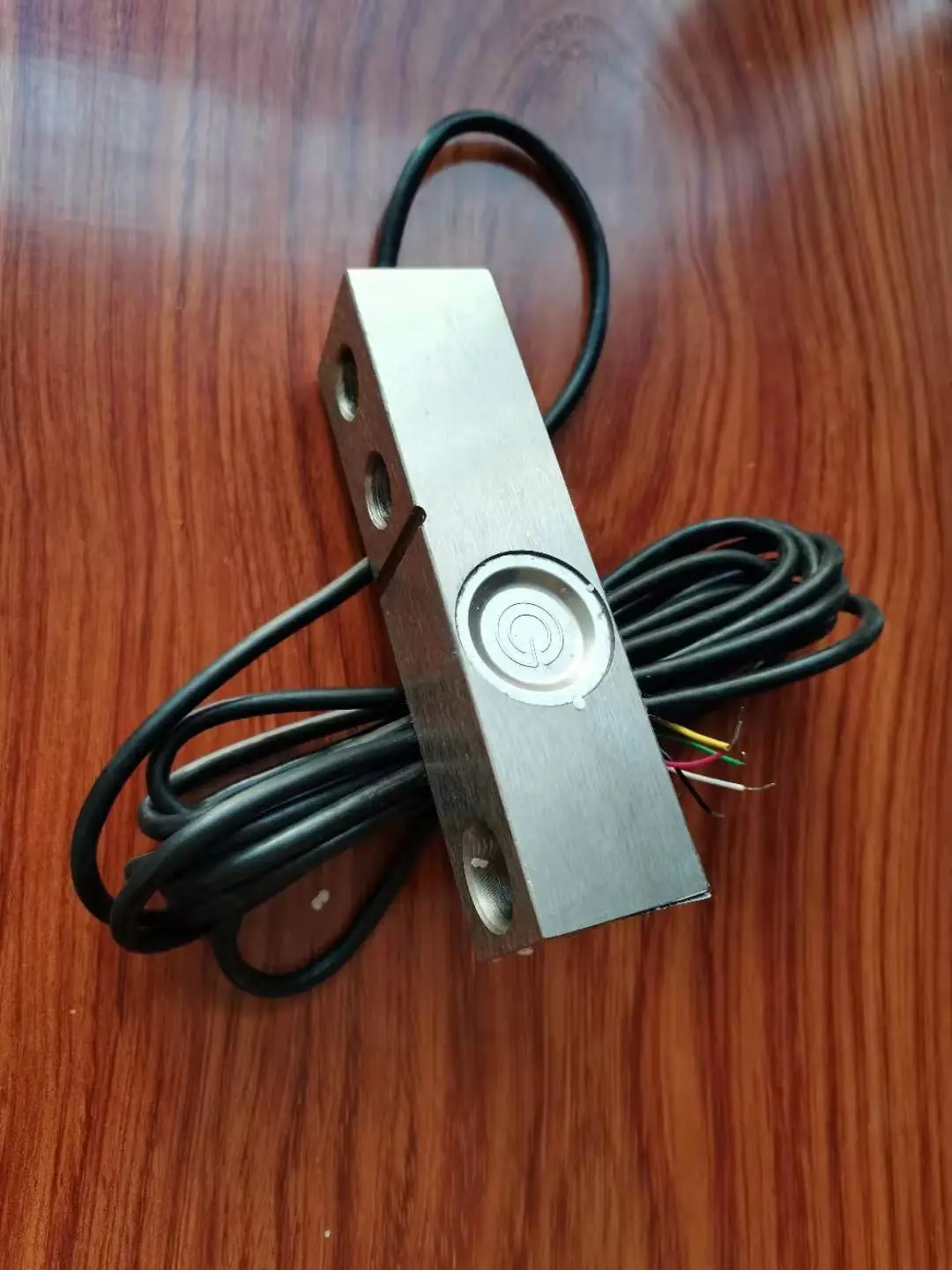

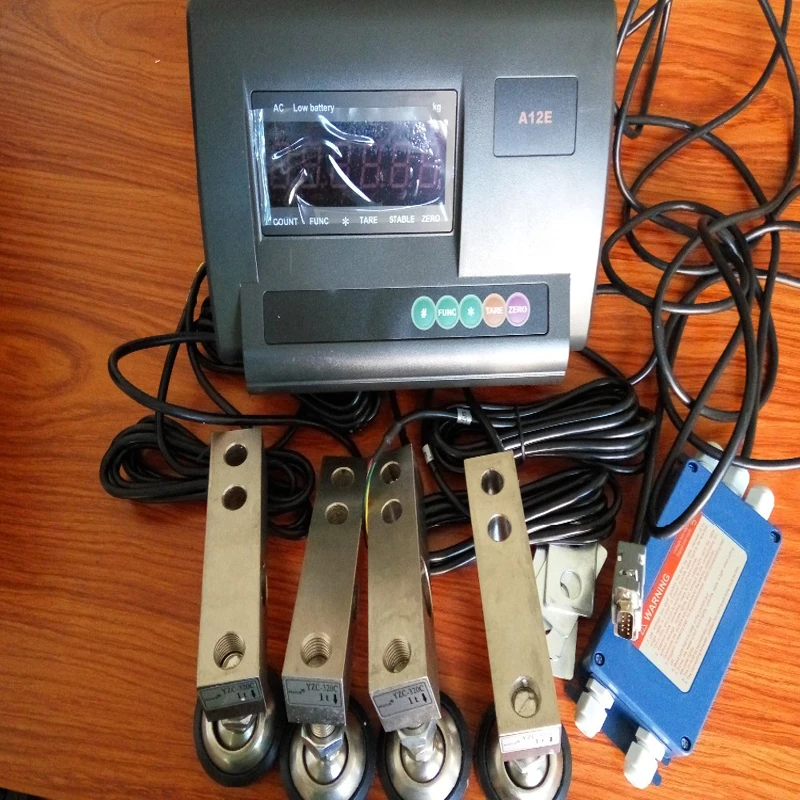

Connect the sensor number: 4 350 sensors can be connected.
Connection: 4 wire sensors
Verification of indexing number: 3000
The maximum number: 30000
Maximum resolution: 300000
Division value: 1/2/5/10/20/50 optional
Display mode (A12): 6 LCD LCD, 6 state indicator

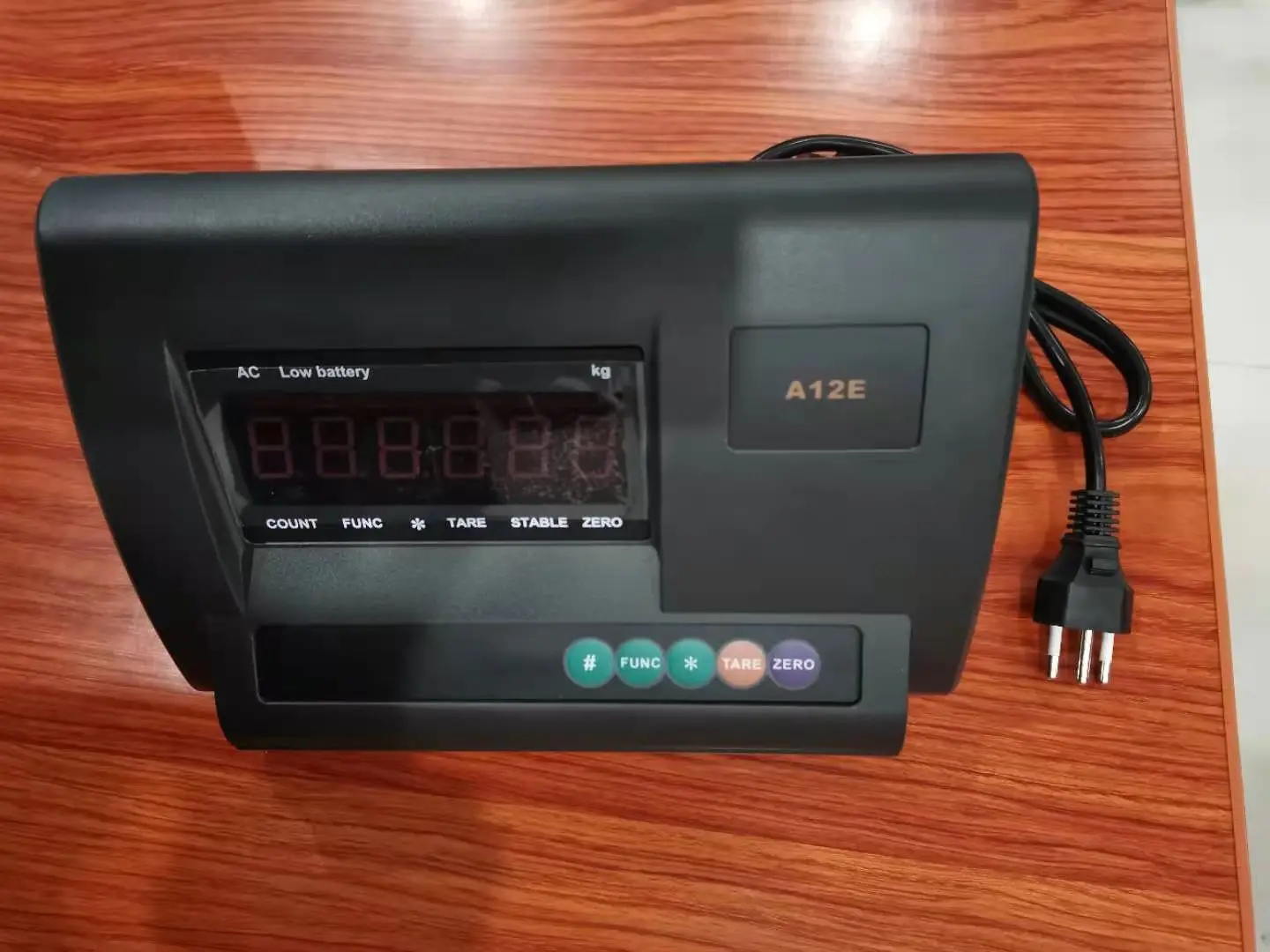

Display mode (A12E): 6 LED digital tube, 6 state indicator
Display range: -2000 ~ 150000 (e=10)
Large screen interface (optional)
Output mode: serial output signal
Signal: current loop signal
Baud rate: 600
Transmission distance: the current loop signal is less than 100 meters

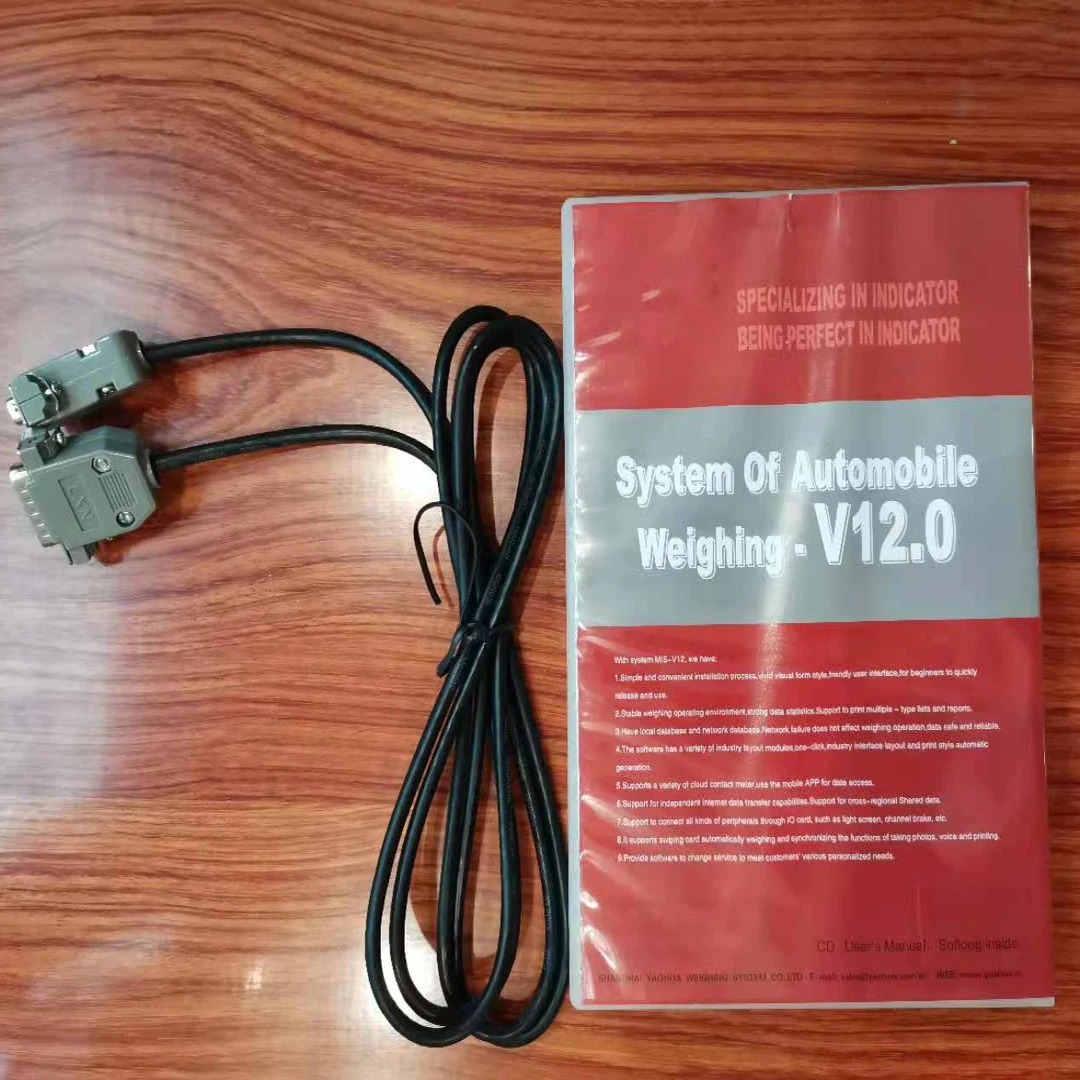

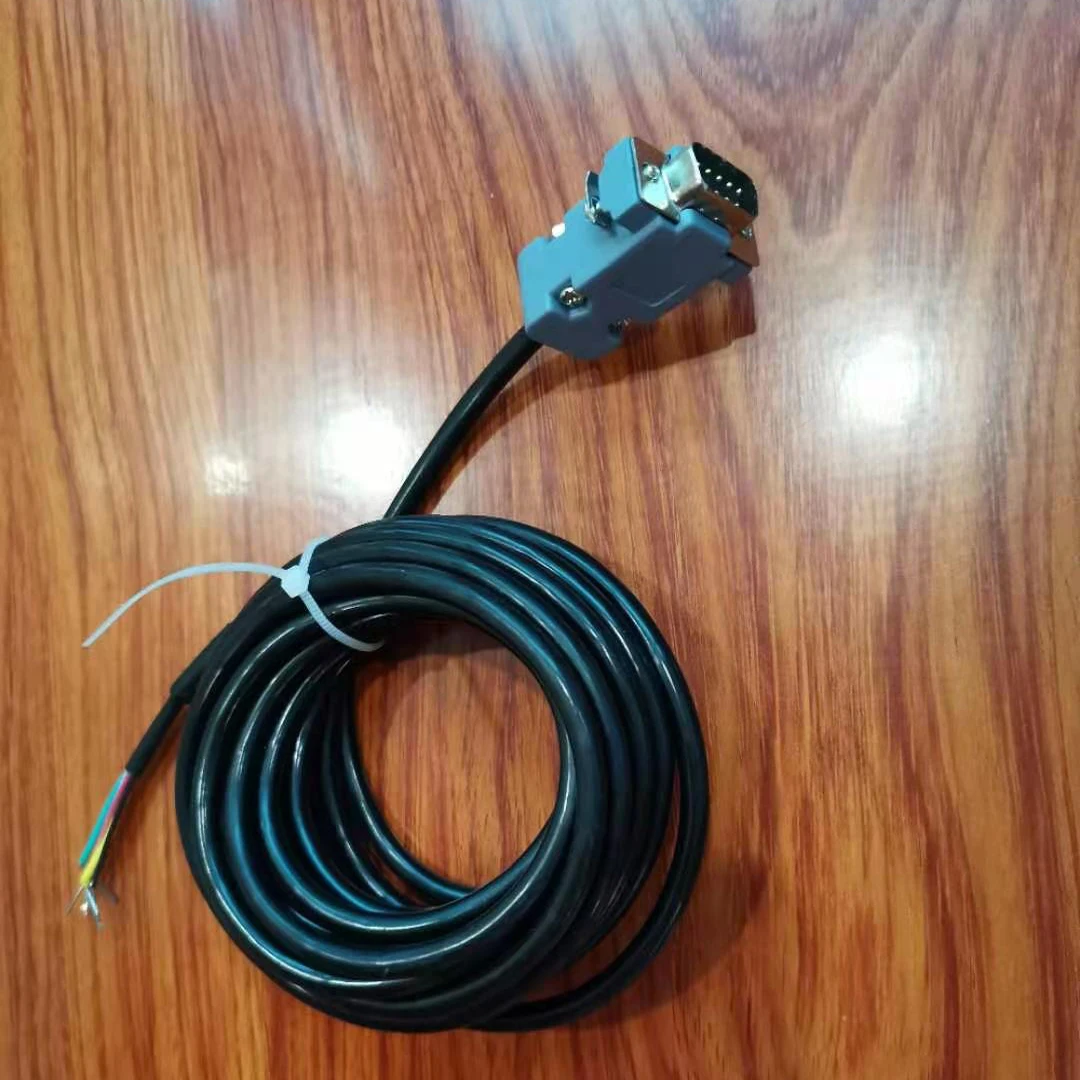

The serial communication interface (optional)
Baud rate: 1200/2400/4800/9600 optional
Communication mode: automatic continuous mode / instruction mode
Transmission distance: RS232C is less than 30 meters
AC power supply: AC187 ~ 242V 49 ~ 51Hz;
